Spring
Material : 70C common carbon steel wire
Size : W.D. * Length
4.5 * 12
5.0 * 14
5.5 * 16
5.5 * 18
5.5 * 20
5.5 * 22
5.5 * 24
6.0 * 10
6.0 * 16
6.0 * 18
6.0 * 20
6.0 * 22
6.0 * 24
6.5 * 16
6.5 * 18
6.5 * 20
6.5 * 22
6.5 * 24
|
| |
 |

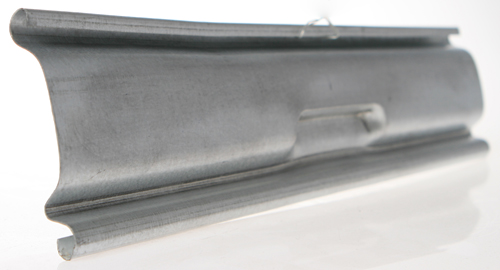

Slats / Curt's
Raw Material : galvalume, effective wide 122 mm, thickness (Gage) from #26 #24 #22 #20 #18
Style : C-type & S-type Length: custom made
The design is C-type.
We also have stainless curts but the sizes available are only #24 and #18
|
| |
 |

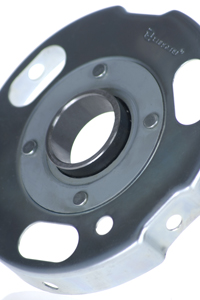

Pulley Small ( A15 )
Material : steel
Outer Dia. : 145mm
Inner Dia. : 35mm
Thickness : 1.2mm
Bearing : single
Pulley Medium ( A14)
Material : steel
Outer Dia. : 160mm
Inner Dia. : 35mm
Thickness : 1.5mm
Bearing : single
Pulley Big ( A15 )
Material : steel
Outer Dia. : 180mm
Inner Dia. : 43mm
Thickness : 1.5mm
Bearing : single / dual
|
| |
 |
Lockset
|
| |
 |
Crown Eye ( A05 )
|
| |
 |
End Lock
Raw Material : galvalume
Size : 102, 122, 136, thickness ( Gage) #20
We also have stainless endlock but the size available is only 122.
|
| |
 |
Stainless Handle
Material : stainless steel
Measure : L113 x W31 x T0.5 x D8 mm
|
| |
 |
Strike Plate
Material : galvanized steel
Measure : L189 x W17 x H4 mm
|
| |
 |
Side Guide
Material : galvanized steel
Length : 7ft, 8ft, 9ft, 10ft, 12ft, 14ft
Thickness (Gage) : #18
We also have stainless side guide but the sizes available are only 8ft,9ft,10ft
|
| |
 |
Center Lock
Material : galvanized steel
Measure : L140 x W93x xH20 mm
Thickness (Gage) : #18
Plate
Material : stainless steel
Measure : L120 x W58x xH27 mm
|
| |
 |
U-Hanger
Material : black steel
|
| |
 |
Hook
Material : galvanized steel
Length : 60, 90 cm
|
| |
 |
Stainless Bottom Bar
Material : stainless steel, color-bond steel
Thickness : 0.8~1.2 mm
Length : 20ft
|
| |
 |
Push Button Box
Type : common size
Measure : Small: L127 x W86 x H55 mm
with 2 flat keys
|
| |
 |
Push Button
Color : gray & black
Measure : L100 x W42 x H36 mm
|
| |
 |

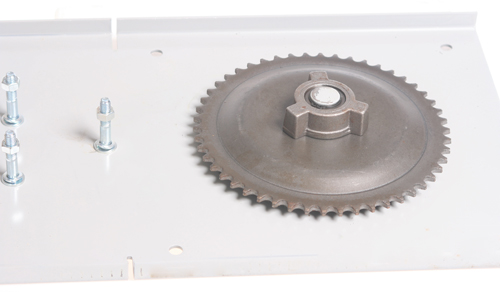

Motor Side Plate
Size : 1.2ft, 1.3ft, 1.4ft, 1.5ft, 1.6ft
|
| |
 |
Remote
Characteristic : Suitable for the different brand and types of rolling door operators and gate operators, to be provided with Turning Code type and Hooping Code type (unable to copy).
|
| |
 |
Roll Up Motor
The latest eight characteristics of the new design of the roll-up motor
- Standard materials and strict quality controls
All accessories of the product possess standard quality and specification. The special design and strict quality controls render the product durable and can stand the test of time.
- Sealing to keep from dust and revolving silently
The entire machine for opening and closing seals up. It also has the equipment that can prevent accumulation of dust. It runs quietly.
- Easy to operate and no-action mistake
Allows for easy scroll-up or scroll-down operation of doors. The product is equipped with a break switch that limits or stops automatic fall. Accidentally pressing the button in the opposite direction while running will not cause the motor to run in the opposite direction.
- Easy to install and revolving power is strong
The machine is small and light. It is easy to install and revolving power is strong, double those of other brands.
- Heat protection and safety
The motor itself has precise heat reconnoiter machine. When it is out of order, the power is cut automatically to keep the door and motor from being damaged.
- The gear preventing opposite running and handed-operation gear
The product has a gear that prevents door to scroll in an opposite direction in case of mishandling. In case of power outage, the door can be scrolled up or down using a chain.
- Security gear and operated explanation
The product has an electric butterfly brake. The chain plate will totally break away from the motor while running, and will not start the motor in case of a mishandling until the machine stops.
- A gear that prevents folding and scrolling in the opposite direction
When the door falls automatically and is blocked, it will not fold and run in the opposite direction thereby preventing damage to the door.
|
| |
| |
Side Plate
Material : B.I
Size : 12 * 12, 13 * 13, 14 * 14, 15, 16
|
| |
| |
Aluminum Strip
Material : Aluminum
Size : L7.5cm * H2cm, L9.5cm * H2cm
|
| |
| |
Padlock Holder
Material : B.I
Size : Small, Big, L
|
| |
| |
Ring
Material : Steel Wire
Size : 145mm * 0.5mm, 160mm * 0.5mm
|
| |
 |
|
| |
 |
|
| |
 |
|
| |
